Waterproof Cable Joint - Cable Connection Sleeve
Waterproof Cable Joint - Cable Connection Sleeve

Flush-mounted Cable Gland

Flush-mounted Cable Gland

Cable Gland
with dome top



Cord Grip Bush

Cord Grip Bush
(Cable Gland with
clamp bridge)



O-Ring
O-ring

Pg-Skid Washer
Pg-Skid Washer

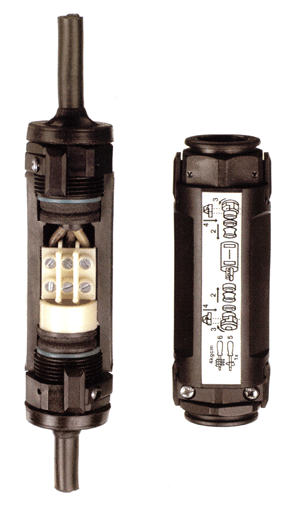

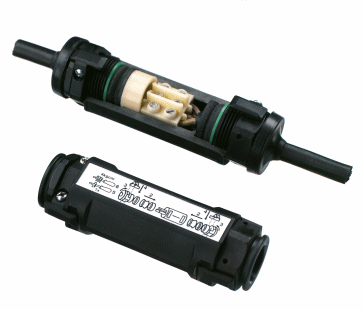

Waterproof Cable Joint
Waterproof Cable Connection Sleeve
Wasserdicht Kabelmuffe
Manchon de Câble Imperméable

Non separable. For repairing or extending moveable rubber cables.
IP 68 for Flexible Cables - flammability rating UL 94 V 0
IP 67 for Rigid Cables - flammability rating UL 94 V 0

New version with larger span of cable diameter.
                 Can be used in open fields, in water, underground and for LED.

Tested and found to be in conformity with: EN 60 998-2-1:2004 (IEC 60 998-2-1:2002)
EN 60 529:1991 + A1 (IEC 60 529:2001)


In accordance with CE
ROHS -conform
Cable Joint Cable Joint

FEATURES:

    Terminals 2 or 3 3x2,5 mm²
    Volt ac/dc 450
    Amp. 16
    Temperature Range -20 to +100 °C

  • Very user-friendly. Only a standard screwdriver is needed to assemble the cable joint.
  • No resin. The cable joint can be reused.
  • Material: polyamide 6.6. V 0. Practically imperishable.
  • Installing the clamp bridges prevents the cable joint from opening even if the cable is twisted.
  • The illustration on the outside of the cable joint shows an installation guide.
  • Cable protection caps are available as an option.
  • Special executions upon request.
Flexible cables: IP 68, waterproof 5 bar
  • The new version has a larger span.
  • The cable joint secures all flexible (rubber) cables with an overall diameter:
    ø7.5-9.2 mm
    ø9.0-14.0 mm
    -provided that the compression nuts are screwed home.
  • Only then the clamp bridges can be inserted. When inserted and installed, the assembly is in accordance with protection class IP 68.
  • Suitable for ex.:
    H05RR-F, H05RN-F and H07RN-F cables.
Rigid cables: IP 67, waterproof 1 meter
  • The cable joint secures rigid (PVC) cable with an overall diameter:
    ø14.0 mm
    -provided that the compression nuts are screwed home.

ORDERING CODE:

Cable Joint, black RE325-0
Cable Joint, grey RE325-8
Cable protection cap RE325-H

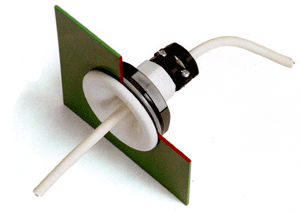

Flush-mounted Cable Gland - Cable Inlet IP 68 - 10 bar
Planversänkte Kabelverschraubungen IP 68

-All other parts belong behind the panel

Heavy, mobile equipment leaves the cable entry particularly exposed and prone to break-down, for instance in the event of collision.
The new flush-mounted cable gland provides maximum protection against damage as all parts, with the exception of a flat collar, are well-protected behind the panel of the equipment.
Under normal circumstances the cable floats freely from the sealing ring, only occasionally touching the bell mouth and thus preventing wear as a result of friction between the cable guard and the cable.

Flush-mounted Cable Gland

ORDERING CODE: M16/M25

Material: Nylon 6.6. V 0
Colours: Black, white or light grey (RAL 7035)
Panel hole: ø25.5 +/- 0.5mm
Panel thickness: 1.5 - 4.0mm
Cable diameter: ø4 - ø8mm
Protection: IP 68 to IEC 529 10 bar
Weight: 16.5g
Operating temp. range: -20 °C to +100 °C

ORDERING CODE: M20/M40

Material: Nylon 6.6. V 0
Colours: Black, white or light grey (RAL 7035)
Panel hole: ø40.5 +/- 0.5mm
Panel thickness: 1.5 - 4.0mm
Cable diameter: ø5 - ø13mm
Protection: IP 68 to IEC 529 10 bar
Weight: 40g
Operating temp. range: -20 °C to +100 °C

ORDERING CODE: P21/M60

Material: Nylon 6.6
Colours: Black, white or light grey (RAL 7035)
Panel hole: ø61.0 +/- 0.5mm
Panel thickness: 2.0 - 11.0mm
Cable diameter: ø10 - ø19mm
Protection: n/a
Weight: 108g
Operating temp. range: -20 °C to +80 °C

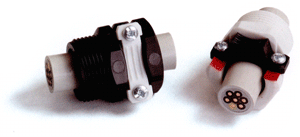

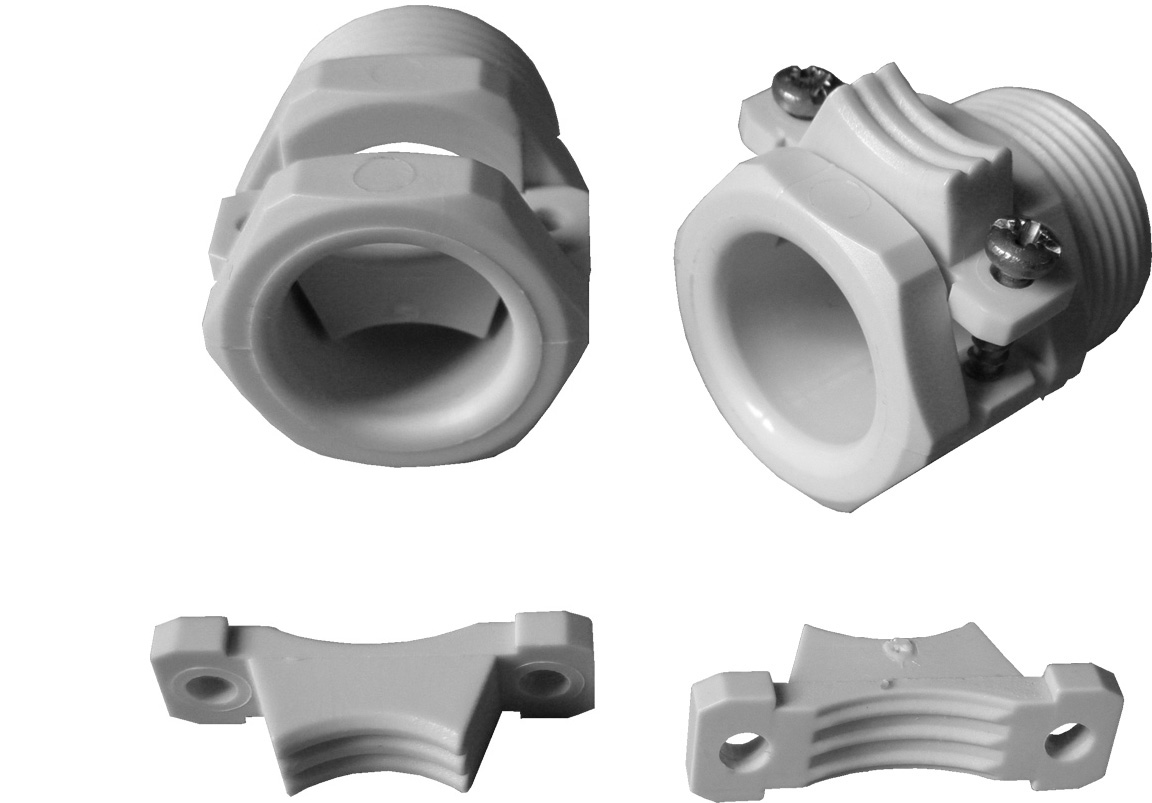

Cord Grip Bush
Kabelverschraubungen

-The Cord Grip Bush has a unique bridge, which has been designed so it can be used upside down, allowing numerous possible cable diameters.

The Cord Grip Bush has been around for decades.

To offer the greatest possible safety the clamp bridge can only be opened using tools. With the older version there was a risk that the clamp bridge would end up at an angle on the lead with only one screw engaged. This made the clamp bridge worthless.

This new Cord Grip Bush cannot be fitted incorrectly, as the clamp bridge can only be moved in the direction of the screw axis. This garantees that both screws will engage, ensuring optimum safety.
The ends of the new clamp bridge are wider than the middle section, which secures that both screws reach equally far into the threads. With two skids in the cord grip bush, the position of the clamp bridge is always secured.


Cord Grip Bush Cord Grip Bush

FEATURES:

Material: Nylon PA 6.6. UL 94
Made to meet: DIN 40430, DIN 46320, DIN VDE 0619, EN 50262
Operating temp. range: -20 °C to +80 °C
Colours: Black or light grey (RAL 7035)
              -White at request
Screws: Zink-electroplated steel, stainless steel

ORDERING CODE:

Thread: Pg or Metric
Type: Pg9, Pg11, Pg13.5, Pg16, Pg21, Pg29
Type: M16, M20, M25, M32
Position of the clamp bridge: M or W
M: for larger cables
W: for smaller cables

Range of cable diameter
- Gesamtklemmbereich
Pg9/M16 3.6.... 11.3
Pg11 4.0.... 13.3
Pg13.5/M20 4.1.... 14.3
Pg16 5.0.... 16.2
Pg21 5.9.... 21.2
M25 .... 15.8
Pg29 7.1.... 29.0
M32 .... 21.9
The above mentioned parameters only concern rubber cables.
- Die Angaben beziehen sich nur auf Gummikabel.


Cable Gland with dome top

Can be delivered from: Pg7 up to Pg36.
M12 up to M50.
Pg16 with dome
Pg16 with dome seperated

FEATURES:

Material: Nylon PA 6.
Colours: Light grey (RAL 7035)
Seal: Neophrene
Protection: IP 68
Operating temp. range: -20 °C to +80 °C






Pg-Skid Washer
Pg-Druckscheibe, Galv. Verzinkter Stahl

ROHS-Conform

Pg-Skid Washer

FEATURES:

Material: Steel, zink electroplated steel
U 9-11-13.5-16-21-29

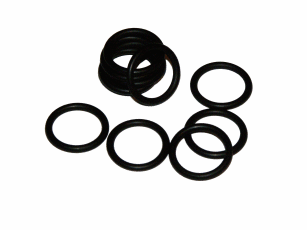

O-Ring

O-Ring
